Scanning process
Preparation
The following preparations are required for acquiring accurate and high-quality tooth scan data.
Intra-oral scanner : Good oral condition such as scaling.
Desktop scanner : Please refer to the following videos.
Scanner performance & scan strategy
To obtain the highest quality scan data, we suggest the accuracy standard for full arch as follows, so please use a suitable scanner. Also, please strictly follow scan strategy recommended by scanner manufacturer each.
Compatible file type : STL, OBJ, PLY
| Type | Accuracy |
|---|---|
| Intra-oral-scanner | 50㎛ ± 10 |
| Desktop scanner | 10㎛ ± 2 |
Suitable scan data

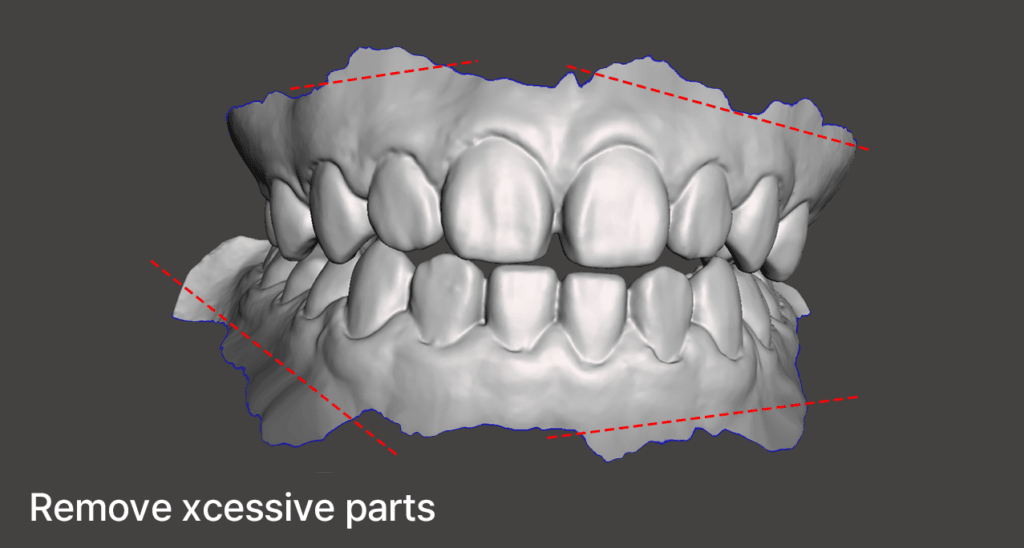

Remove excessive parts
Fill holes

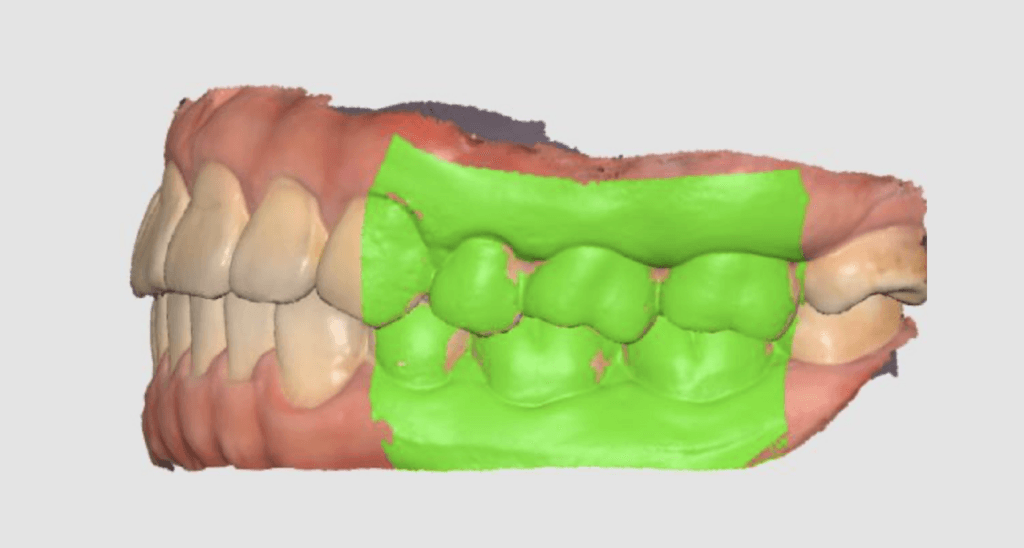

Points to check when scanning
| Not suitable | Suitable | |
|---|---|---|
| Must scan at least 4mm below margin line | ||
| Must be scannerd up to posterior |
Bite check
Check bite to make sure the scan was proper. To confirm bite, compare it with the patient's oral photograph.
Check bite - If left and right molars are open when viewed from the back, it's not suitable.
