3D View
This section explains how to rotate, zoom in&out, and pan to check 3D data.

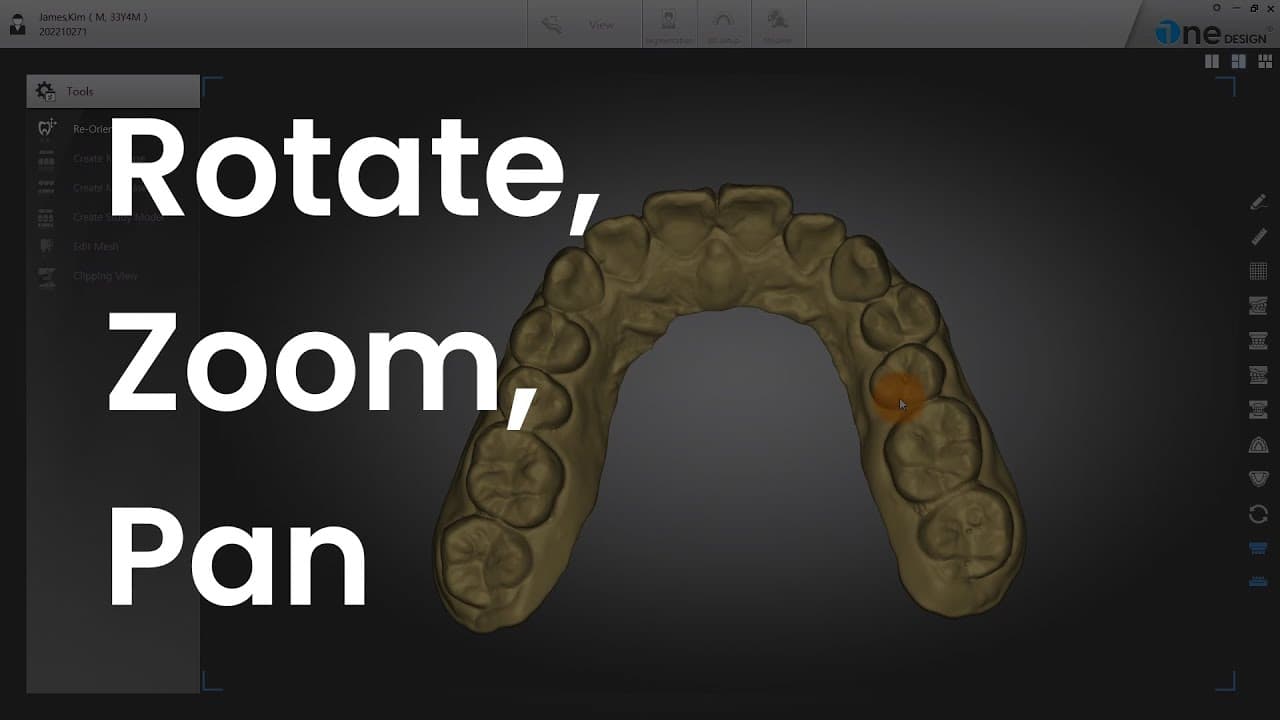

1. Rotate / Zoom / Pan
- Rotate : Left click + drag
- Zoom : Mouse wheel
- Pan : Right click + drag
Layout
This section explains how to change the screen composition, view position and size of windows.
1. Screen Composition
: Tabs, Functional tool bar, Show-Hide tool bar, View screen, Common tool bar and Step tool bar.

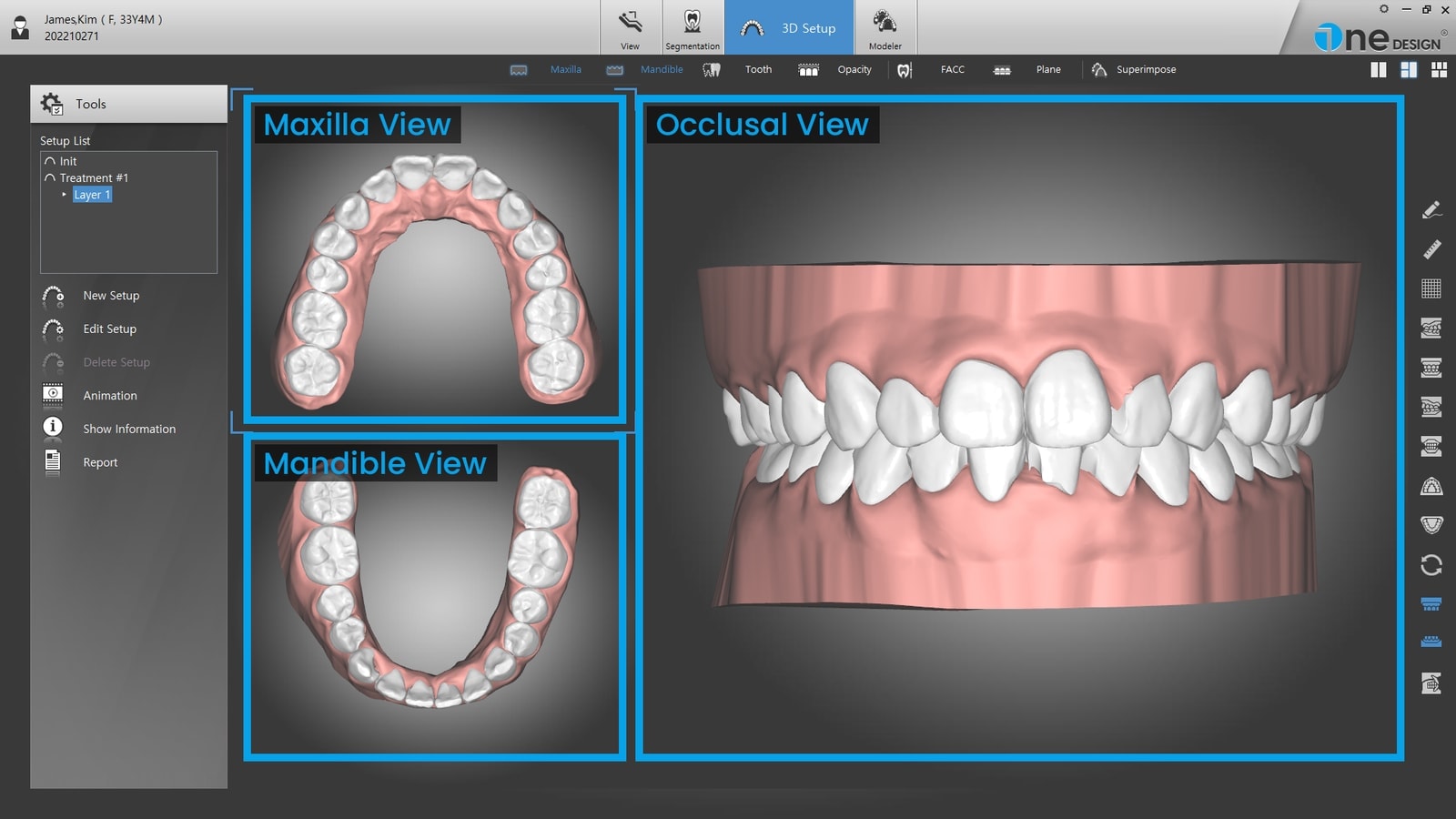

2. View screen
: Maxilla, Mandible and Occlusal view.

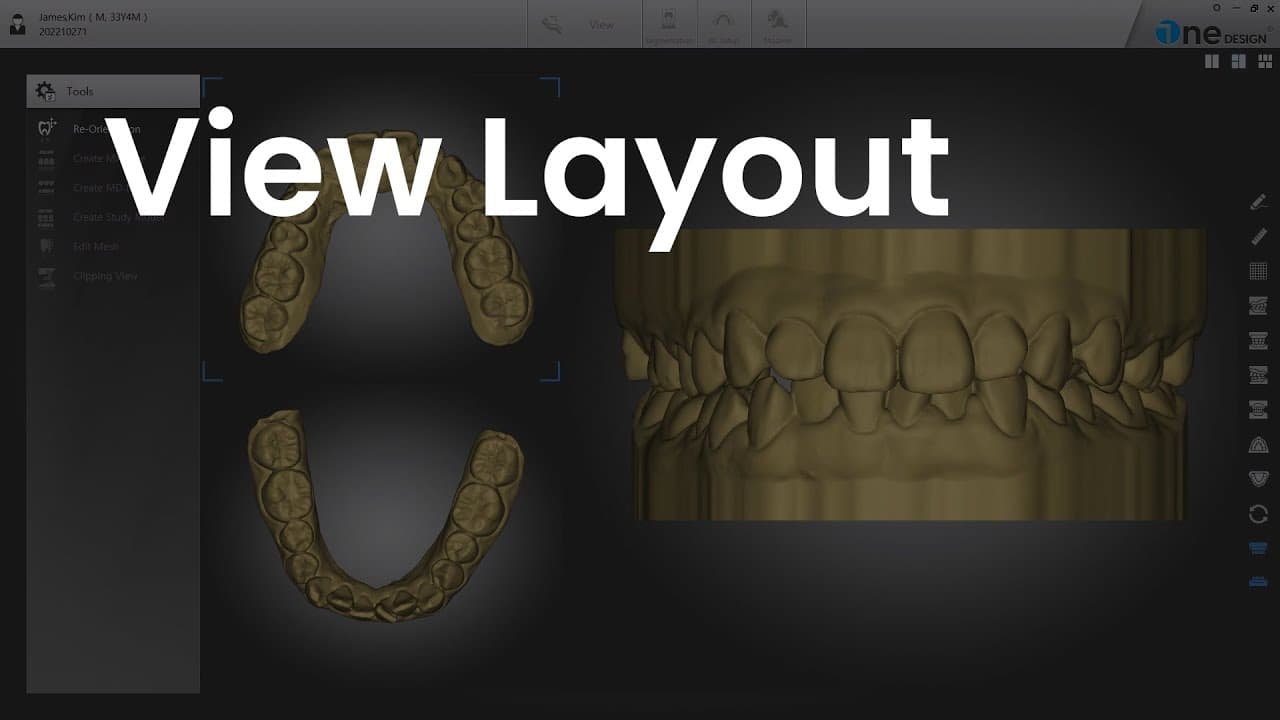

3. View change
: 2 small views on left and 1 large view on right.
- Double click left view to move it to right.
- Double click right view to make full view.
- The same View position/screen change can also be performed using the Ctrl + X shortcut key.
※ Double-clicking or pressing the shortcut key again will return to the previous view state.
Interim Save
Saves the work completed up to the current point to the server.
※ The work is automatically saved when the program is closed.
- Click the Save button in the upper-right corner of the screen.
Tools
1. Common Tools
Free draw : Activate draw
Length : Activate ruler
Right rotate : Rotate 90 degrees to the right
Front rotate : Rotate to the front
Left rotate : Rotate 90 degrees to the left
Back rotate : Rotate to the back
Upper rotate : Rotate to Mx occlusal
Lower rotate : Rotate to Md occlusal
Reset rotate : Reset camera
Mx show/hide : Show/Hide Mx
Md show/hide : Show/Hide Md
Clipping view : Clipping View
2. Show / Hide Tools
Maxilla : Show/Hide Mx gingival
Mandible : Show/Hide Md gingival
Tooth : Show/Hide teeth
Opacity : Control opacity of the model
FACC : Show/Hide FACC
Plane : Show/Hide plane
Attachment : Show/Hide attachment
Label : Show/Hide labels
Superimposition : Superimpose init/setup/layer/steps
Overlap info : Display teeth overlap
Arch : Show/Hide arch

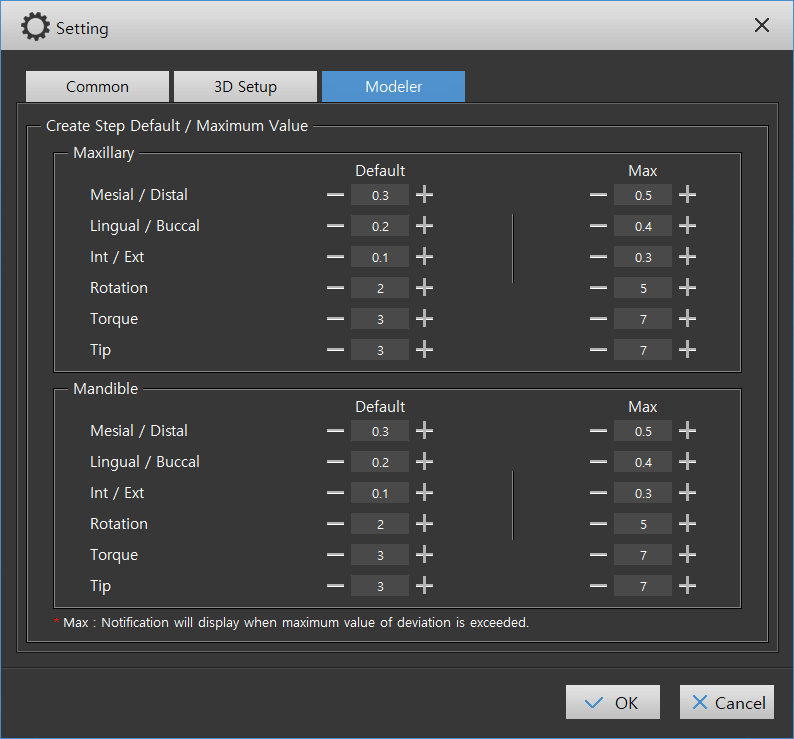

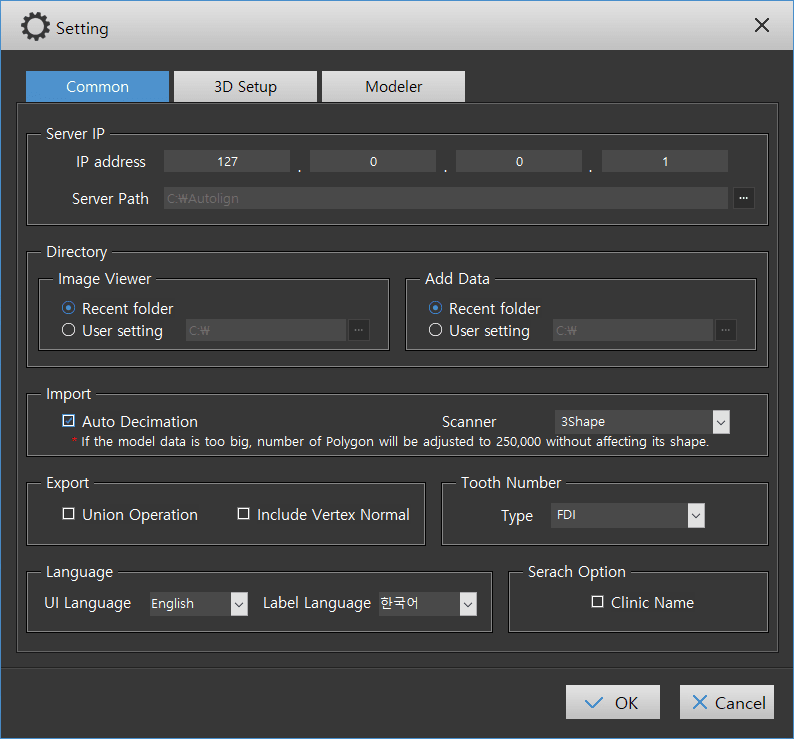

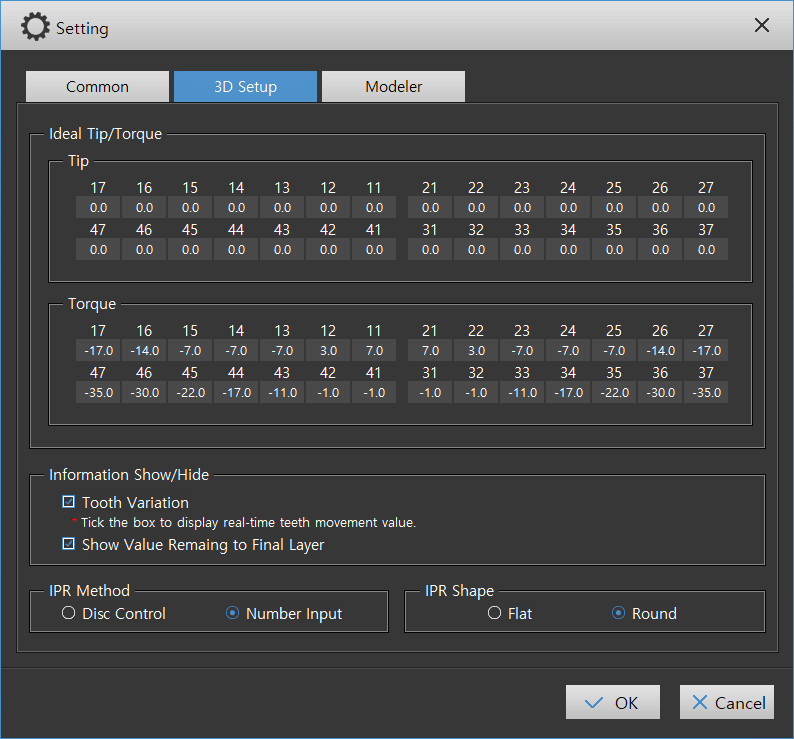

3. Setting
: Menu to change setting values.
